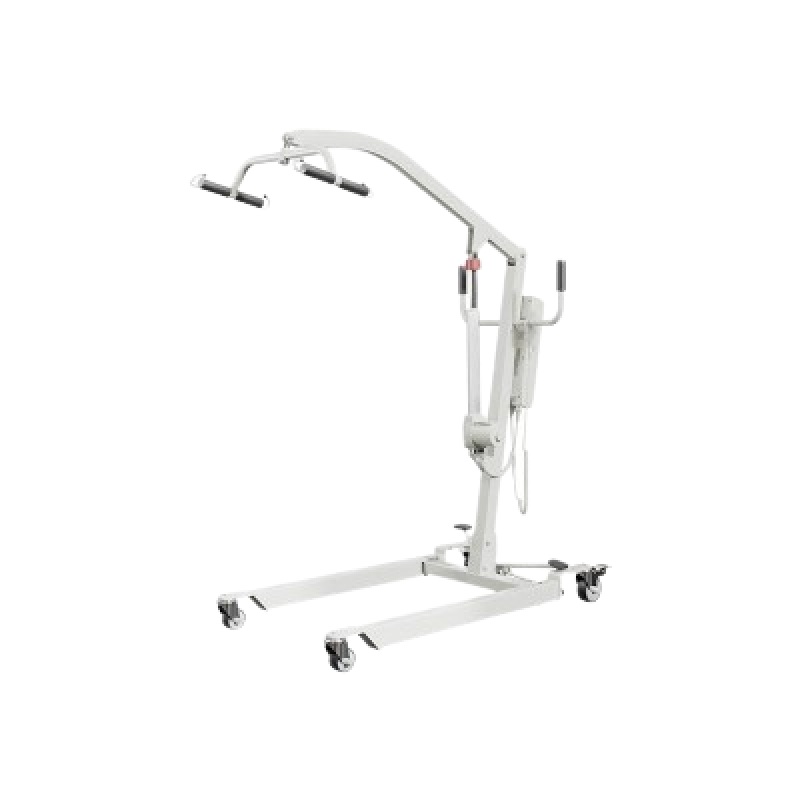

AY02 Electric Transfer Hoyer Lift

Engineered for both home and institutional care, this motorized full-body lift provides secure, controlled patient transfers with minimal physical strain for caregivers.

Features:

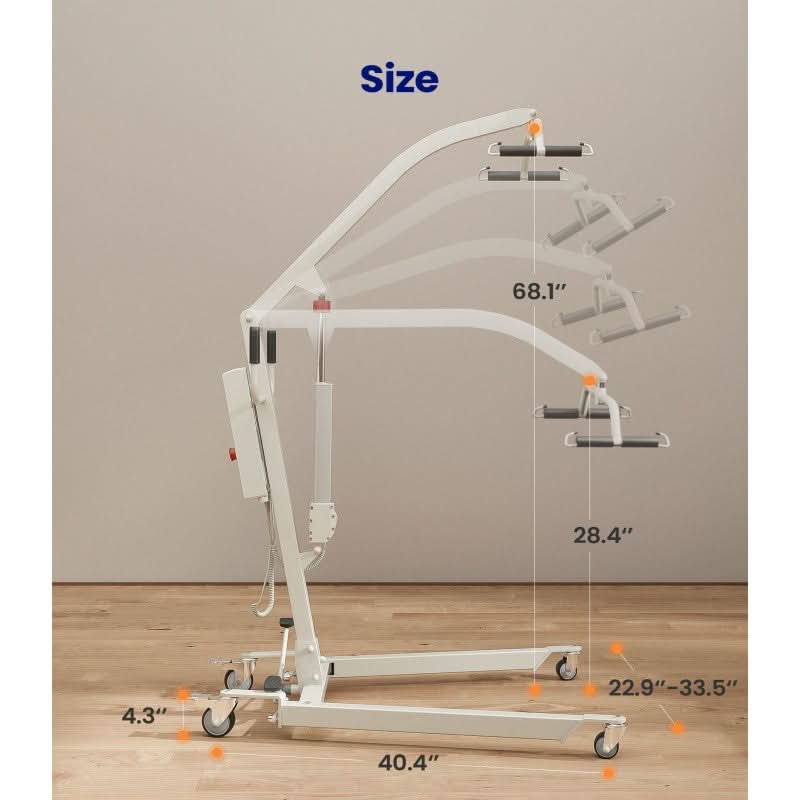

• Wide Lifting Range: The lift arm adjusts from 28.4" to 68.1", accommodating a variety of transfer scenarios including bed-to-chair, chair-to-wheelchair, and more.

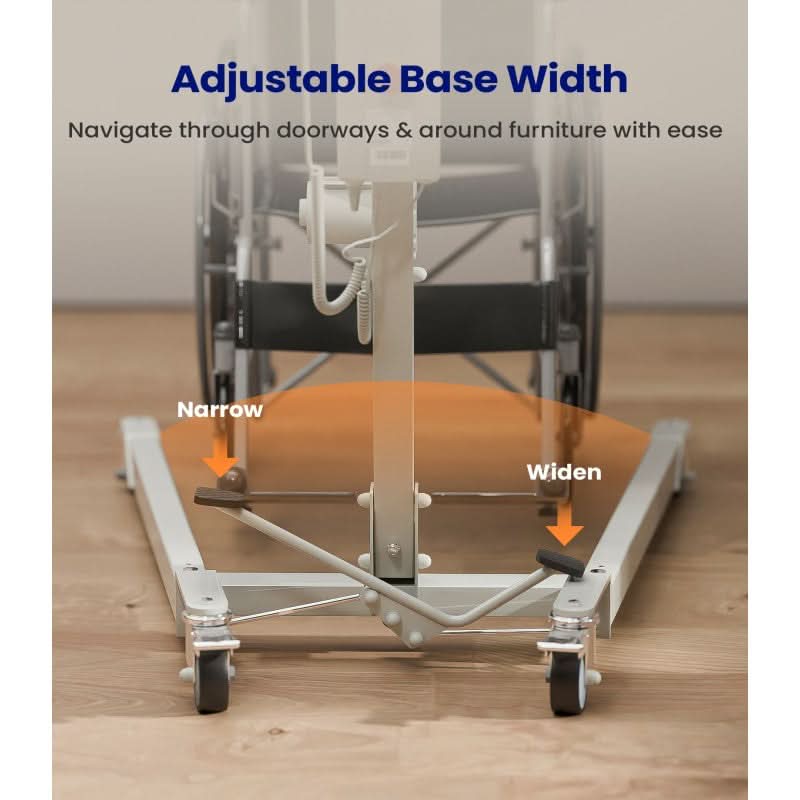

• Adjustable Base Width: The base expands from 22.9" to 33.5", ensuring stability and flexibility in tight or open spaces.


• Low Clearance Base: With a 4.3" base height, this lift can easily slide under most beds and furniture for seamless positioning.


• Heavy-Duty Construction: Built from high-strength steel, both the lift and sling provide exceptional durability and long-term use.

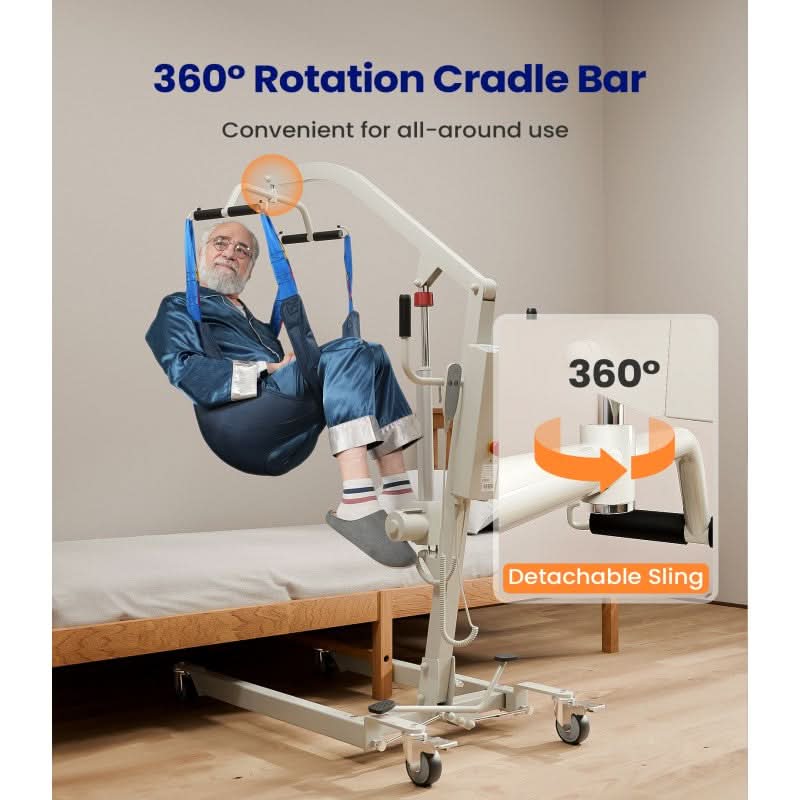

• 360° Rotating Sling Arm: The sling arm rotates 360 degrees, allowing for precise and flexible positioning during transfers.

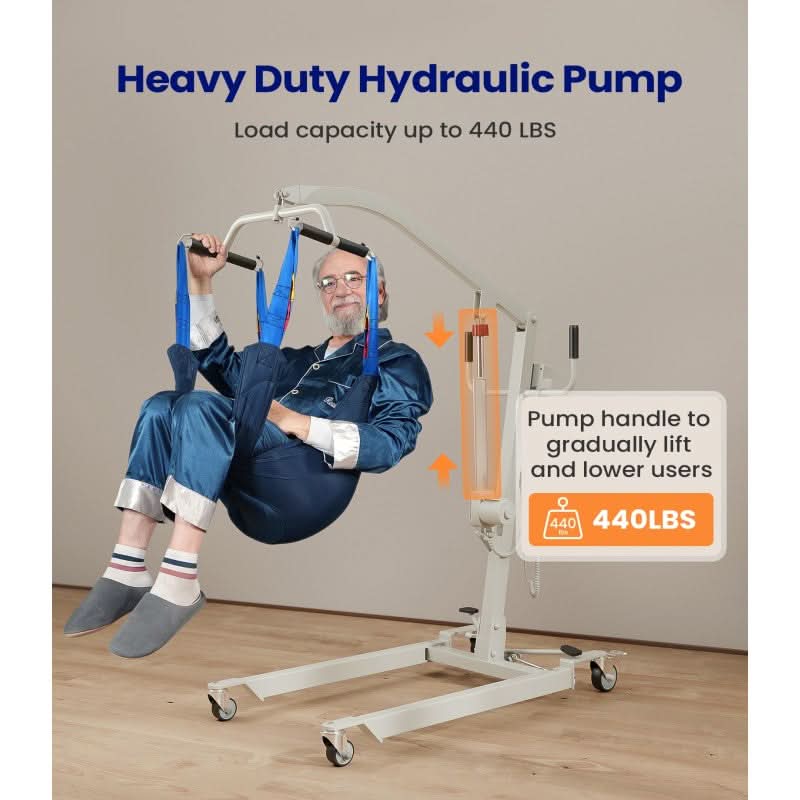

• High Weight Capacity: Supports up to 440 lbs, offering safe lifting for a wide range of patients.


Package Includes:

• Rack ×1

• Main Actuator ×1

• Control Box ×1

• Handheld Controller ×1

• Power Adapter ×1

• Spreader Bar ×1

• Instruction Manual ×1

• Wrenches ×2

Specifications:

Frequently Asked Questions:

How do I activate the AY02 Transfer Lift?

Follow these steps to properly activate the device:

• Fully charge the control box, then disconnect it from the power source (the lift will not operate while plugged in).

• Mount the control box onto the mast’s mounting plate.

• Use the Allen wrench to install the limit screw.

• Connect the motor cable to the second port from the left on the control box.

• Pull out and turn clockwise the emergency stop button to release it.

• Press the “UP” or “DOWN” button on the control box to power on the lift.

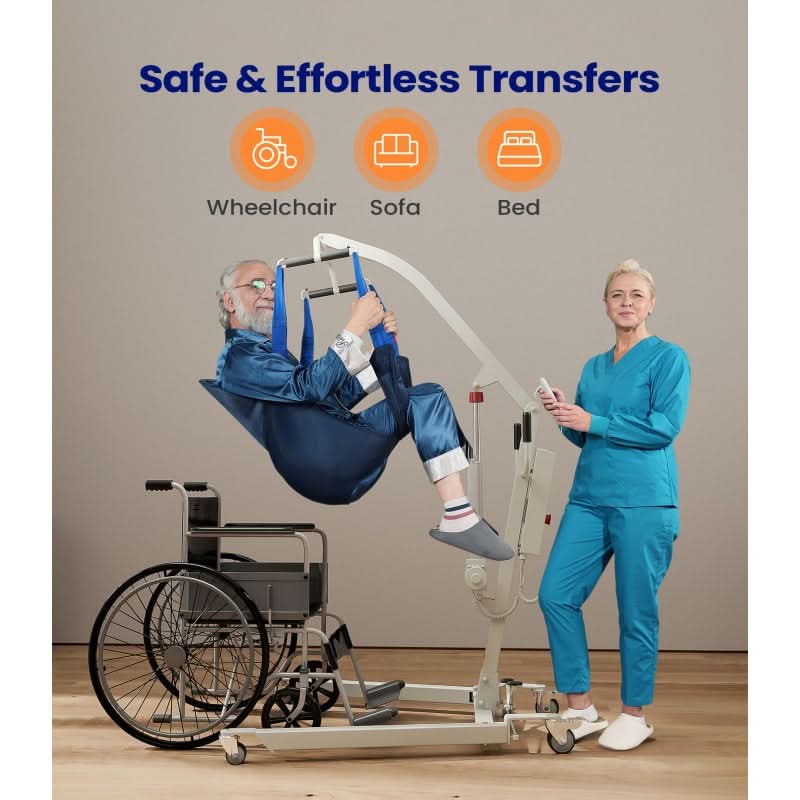

What transfer scenarios is the AY02 Lift designed for? Is it only for wheelchair use?
Not at all. The AY02 Transfer Lift is ideal for a variety of short-distance transfers, including:

• Bed to wheelchair

• Wheelchair to sofa

• Shower chair to bathtub lift
  It’s suitable for the elderly, disabled, or patients in home care or rehabilitation settings. Features such as adjustable base width with foot pedals, 360° rotating sling hooks, and breathable U-shaped slings make it adaptable to many environments.


How long does it take to fully charge, and how long does a charge last?

• Charging Time: Approximately 6–8 hours

• Usage per Full Charge: Roughly 18–21 lift cycles

• Built-in overcharge protection ensures battery longevity and safety.
